Efficient, Flexible, and Reliable Element Production

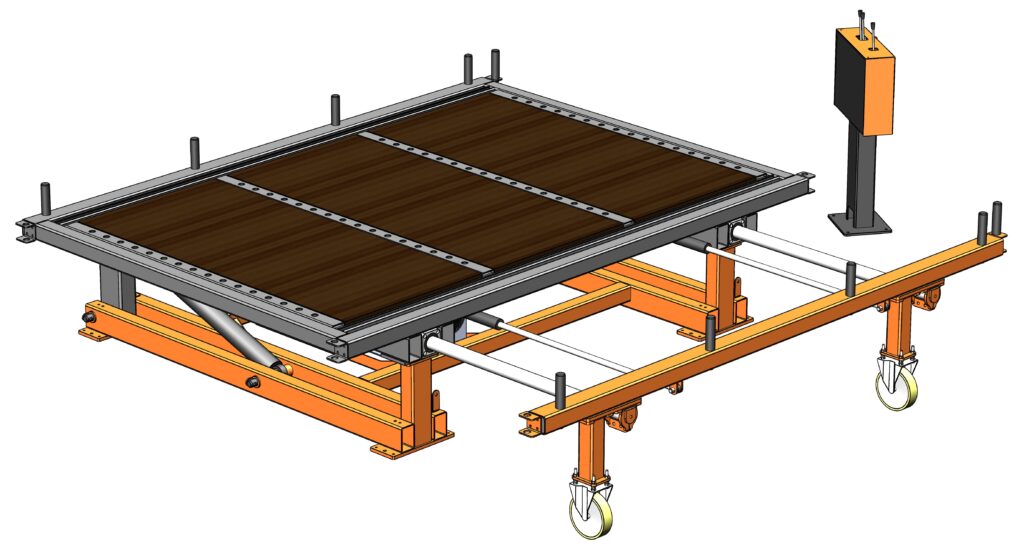

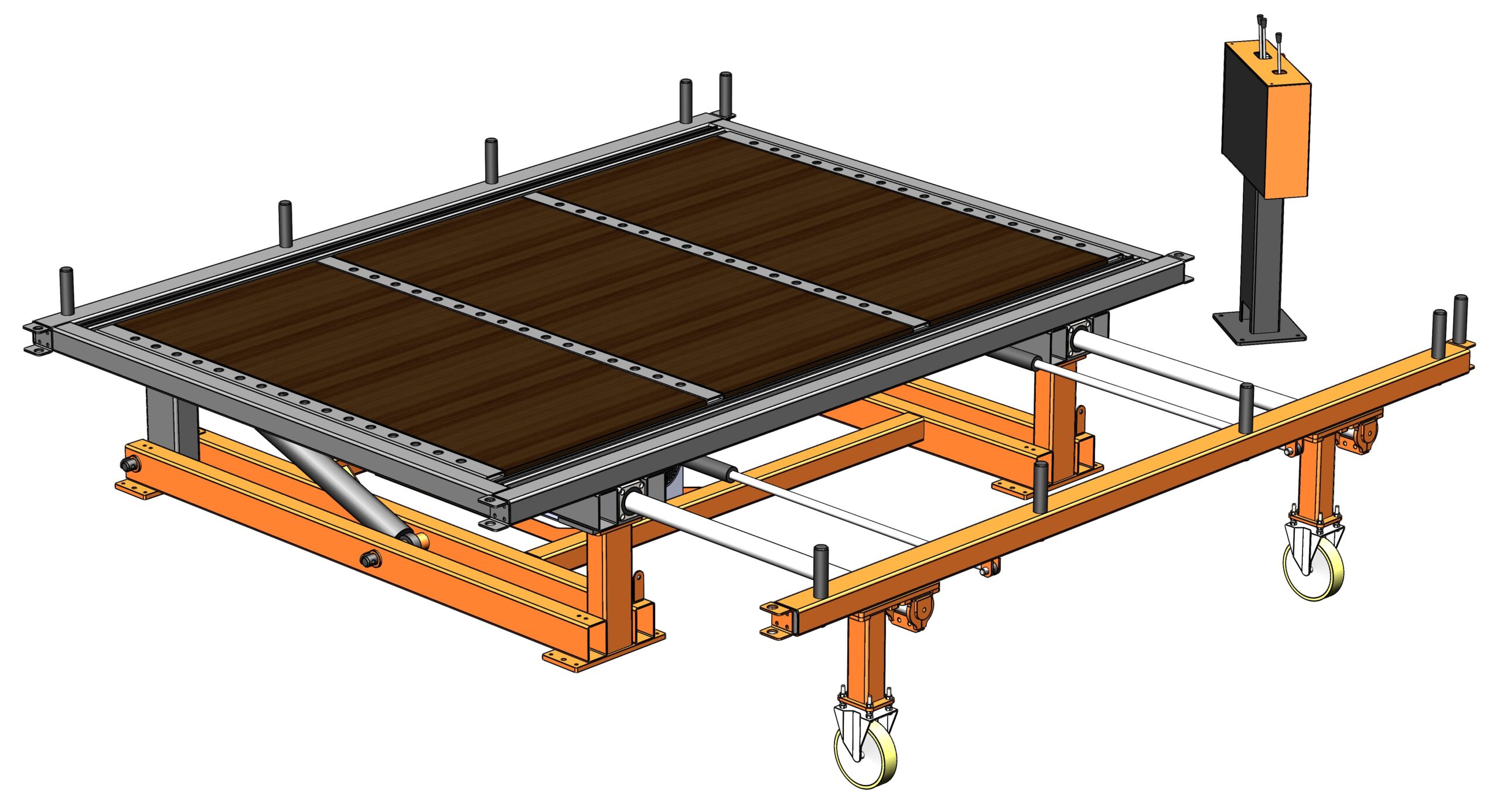

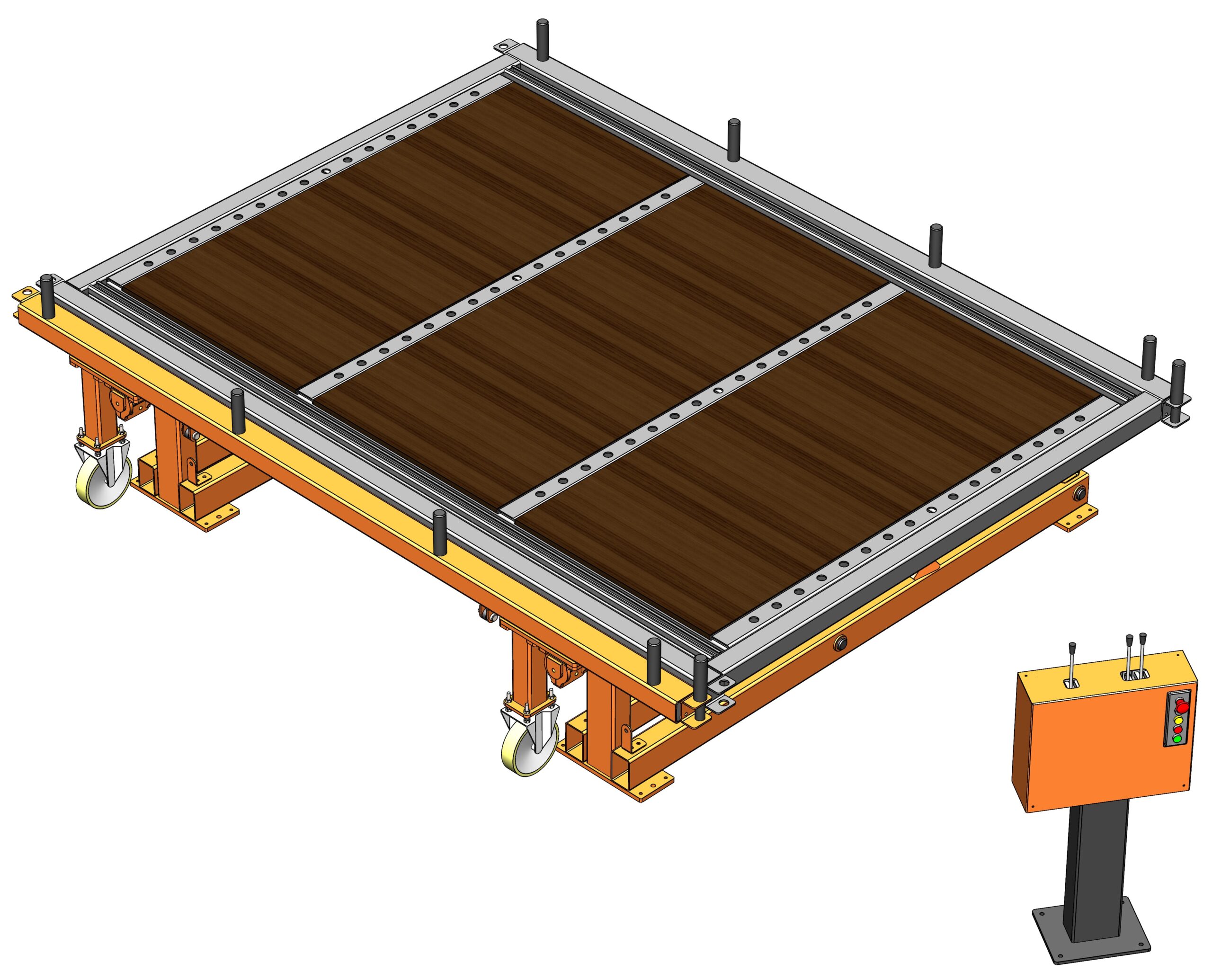

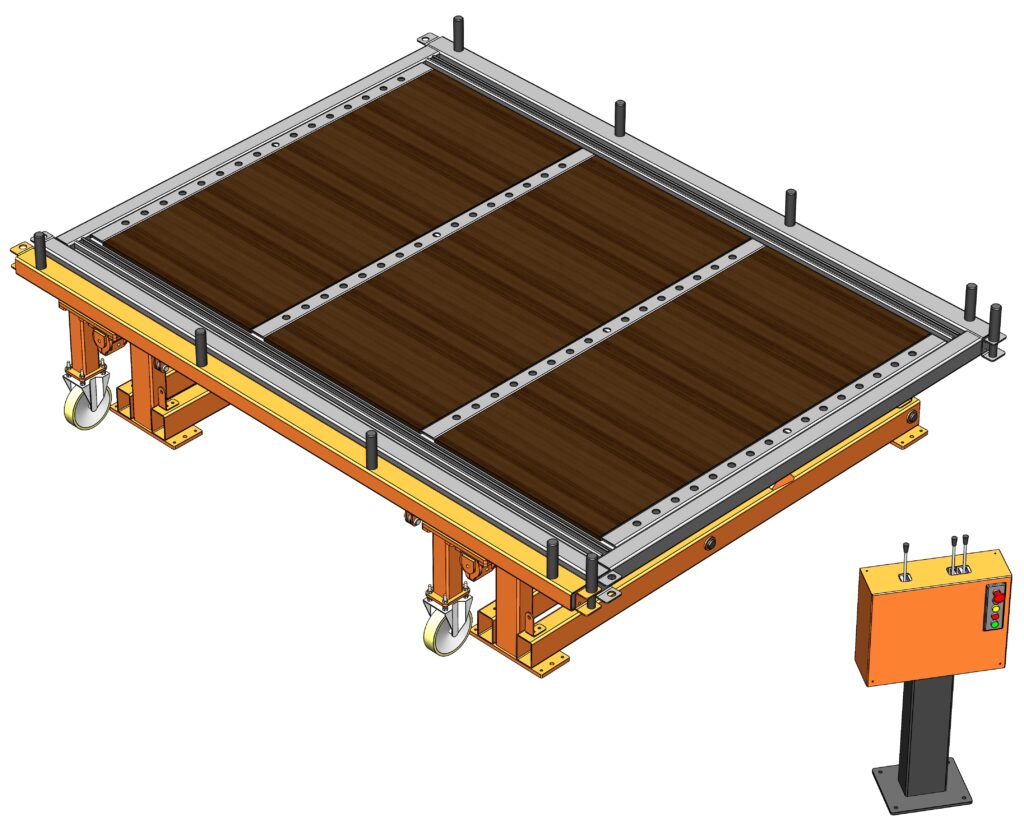

The Penope Tilting Table is a robust and versatile solution designed for efficient production and handling of prefabricated elements. Built for precision, durability, and ease of use, this single-sided element table combines hydraulic functionality with flexible adjustment features to optimize your workflow.
Key Benefits
- High load capacity – Handles elements up to 1000 kg
- Flexible size adjustment – Adapts to different element heights
- Efficient workflow – Hydraulic tilting and clamping reduce manual work
- Customizable setup – Movable stop pins and modular fixing options
- Built for versatility – Suitable for both large and smaller elements
Technical Specifications
- Table Dimensions
- Length: 3000 mm
- Width: 2600 mm
- Height: 700 mm
- Element Capacity
- Maximum length: 3000 mm
- Maximum height: 2600 mm
- Maximum weight: 1000 kg
- Advanced Hydraulic System
- Hydraulic width adjustment: 2400 – 3400 mm
(adjusted according to element height) - Hydraulic element clamping for secure positioning

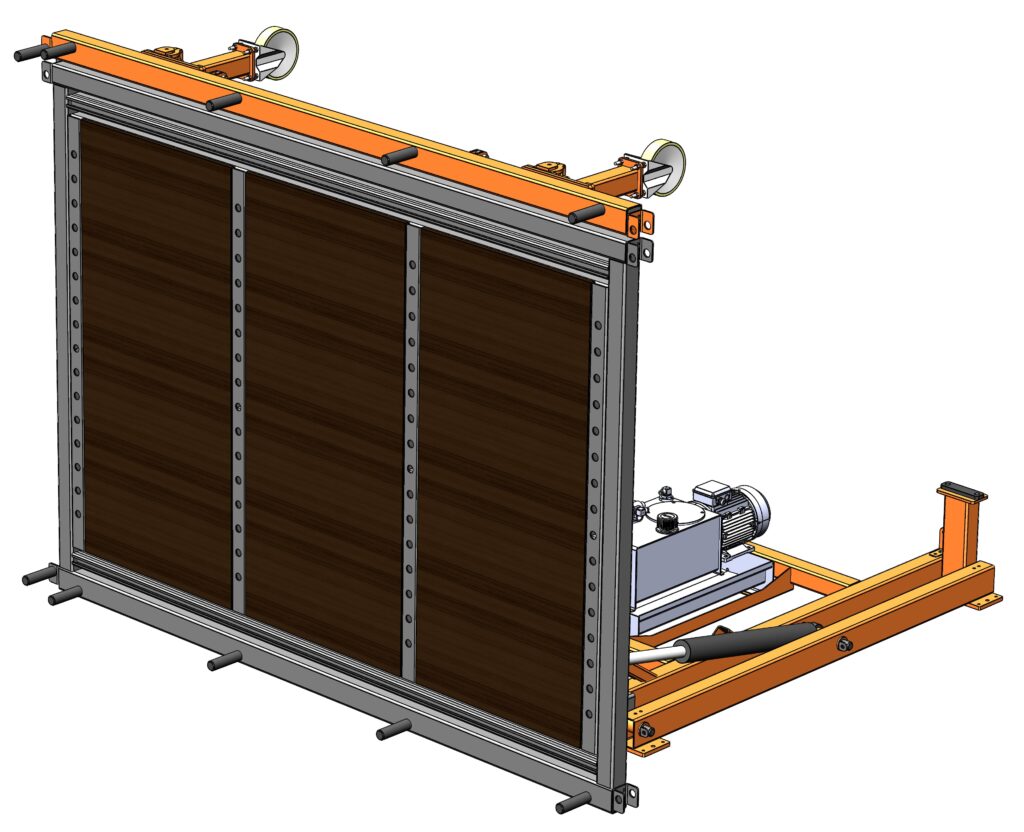

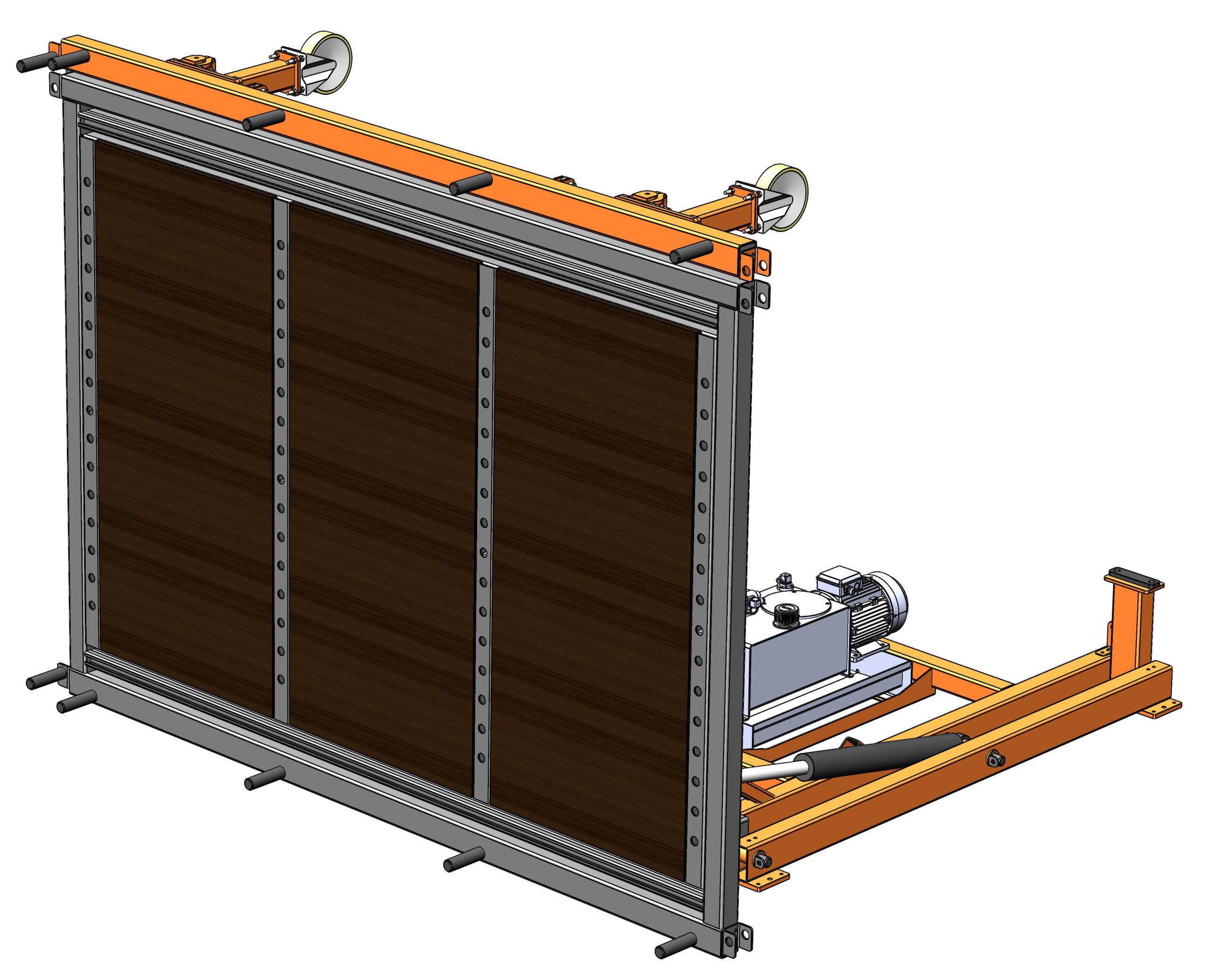

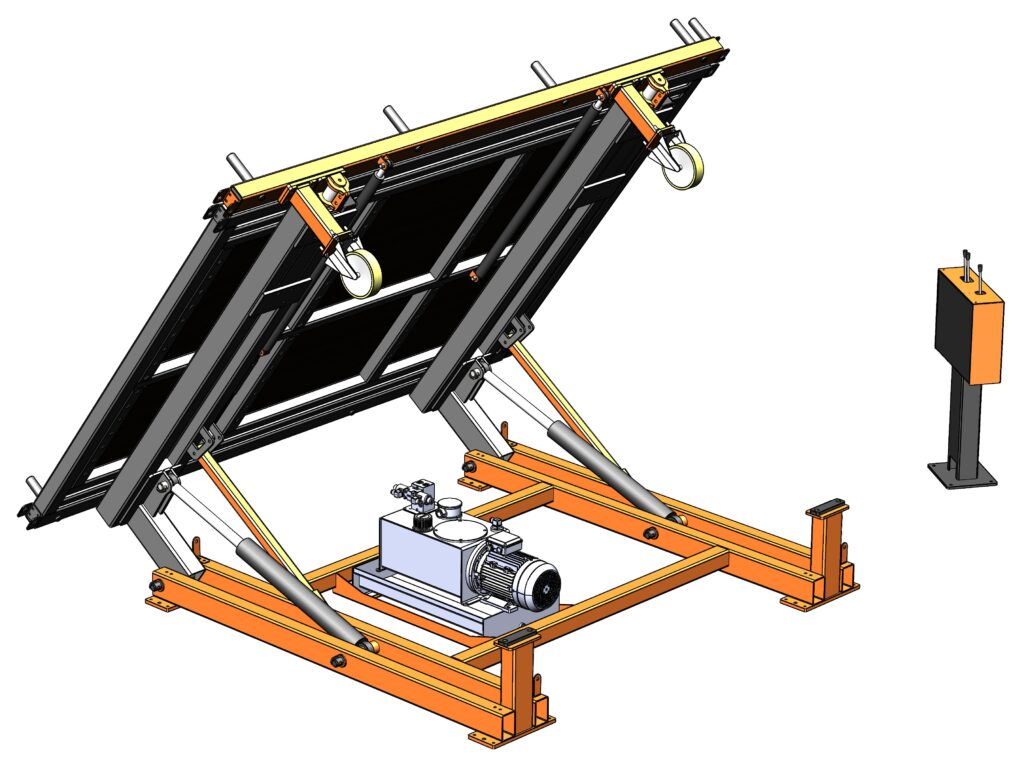

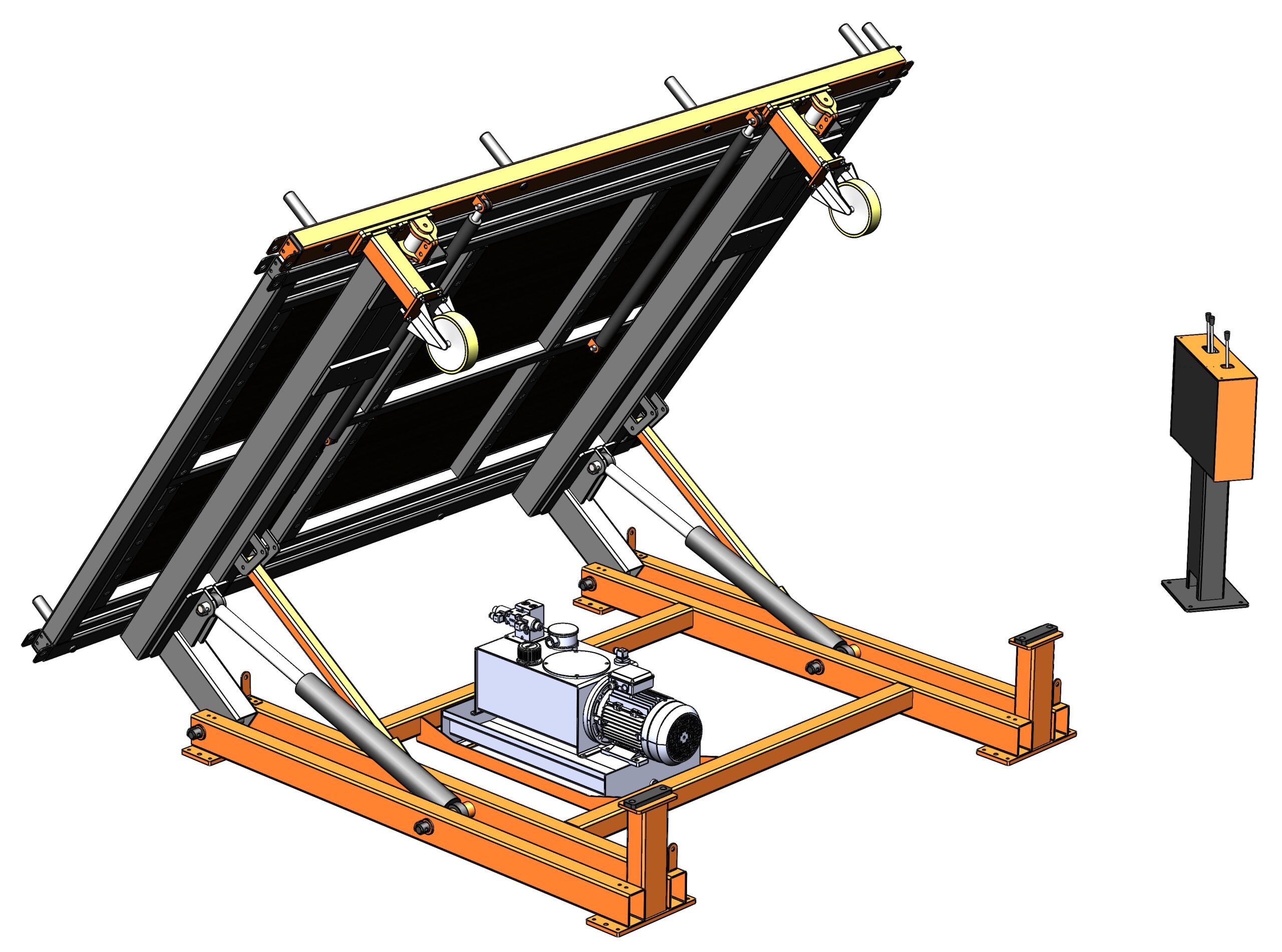

- Hydraulic tilting function for ergonomic handling and processing
- Hydraulic width adjustment: 2400 – 3400 mm
- Flexible Fixing System
- Removable stop pins:
- 8 pcs on long sides
- 2 pcs on right side
- Stop pin length: 200 mm (customizable)
- Perforated support beams for small elements
- Ideal for elements under 2400 mm
- Enables flexible repositioning of stop pins
- Removable stop pins:
- Additional Features
- C-profile rails on long sides
- Allows use of special fasteners and accessories
- Compressed air connections (2 pcs)
- Conveniently located on long sides for tool integration
- C-profile rails on long sides
Designed for Productivity
The Penope Tilting Table is engineered to streamline production processes, improve operator ergonomics, and ensure consistent quality in element manufacturing. Its combination of hydraulic automation and adaptable fixtures makes it an ideal choice for modern production environments.
Applications
- Prefabricated wall elements
- Structural panels
- Industrial component assembly
- Custom element production
Why Choose Penope?
With a focus on quality engineering, durability, and flexibility, Penope solutions are built to meet the demands of modern production facilities while maximizing efficiency and safety.
